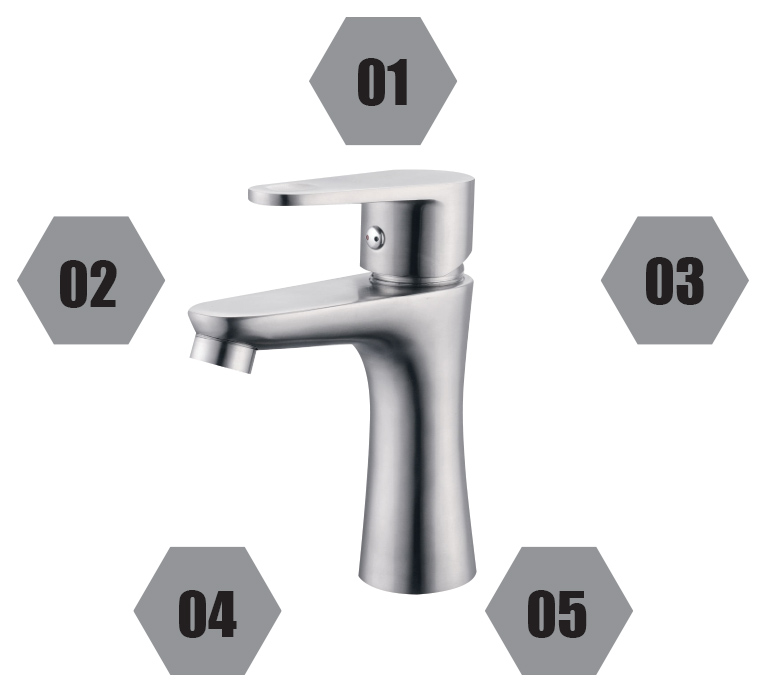

SS304 Stainless Steel Characteristics


about magna brand

01. Health :

304 stainless steel is a kind of material which can be implanted in the human body health, safe non-toxic, no separation material, no peculiar smell, will not cause secondary pollution to water, pure water hygiene.

02. Corrosion resistance :

304 stainless steel has good corrosion resistance even for buried usage.

03. High strength :

304 stainless steel has strength greater than 530n/mm,2 times that of galvanize pipe or 3-4 times of copper pipe, 8-10 times the size of PPR pipe and has good ductility and toughness.

04. Waterproof :

304 stainless steel can stand up to 30m/s high speed water low erosion still has the service life of more than 100 years.

05. High temperature resistance :

304 stainless steel can hold up to 270-400 C temperature.

Made in Spain

Qulity of Magna brand

HIGH QUALITY GENUINE LEAK PROOF CARTRIDGE


Brass headwork
Ceramic HW 90º
19MC04 (Left)

magna technical banner

Technical Specifications

Rotation angle 90º
Working pressure (recommended) 1 – 5 bar
Pressure resistence – ASME A112 35 bar
Burst pressure >50 bar
Life cycle – EN 200 200.000 cycles
Life cycle – ASME A112 500.000 cycles
Max. Hot water 65 ºC
Turn left – right 0.100 - 0.200 Nm
Material Brass

Technical Data Sheet

magna structure view

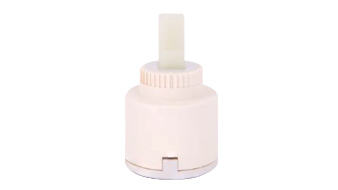

EN-35 S/D BG BASIC

Single lever cartridge
Standard 35mm
08EN35S0011

magna technical specification


Technical Specifications

Nut torque/Pitch 1,5 10-12 N.m
Opening angle 25º
Rotation angle 90º
Working pressure (recommended) 1 – 5 bar
Burst pressure 35 bar
Life cycle EN 817 70,000 cycles
Life cycle ASME 112.18.1 M 500,000 cycles

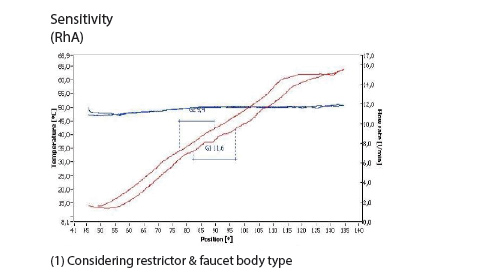

Sensitivity 12º ÷ 14º angle
Constant 63ºC & 50ºC (6 l/min-3 l/min) 1,1º – 1,4º
Recommended hot water
temperature according standards
Max. Hot water temperature

60ºC – 65ºC
90ºC

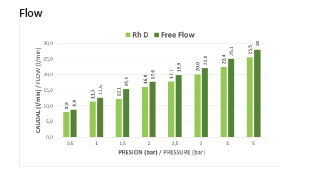

Flow rate at 3 bar

Free flow 22,1 l/min
D-Restrictor 20,0 l/min


Operation Torque

Open – close 0,25 ÷ 0,30 Nm
Turn left-right 0,25 ÷ 0,30 Nm

Technical Data Sheet

magna technical data
Magna Tech details
